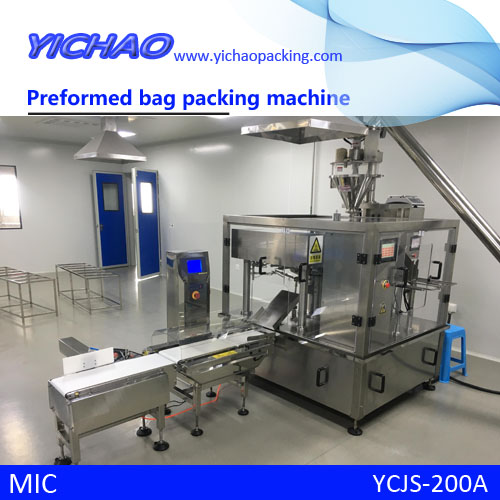

Milk Powder proformed Pouch packing machine

Name QTY Main parameters and configuration
YCJS-200A bag-feeding packaging machine 1 PCS It is equipped with one-button automatic adjustment of bag width function;
YCJS-3B screw metering machine 1 PCS 1. The silo volume of the metering machine is 50L, all made of 304 stainless steel, and equipped with an independent control system.
2. The dosing screw is formed by CNC machining at one time, with extremely high metering accuracy and vertical concentricity, so as to ensure the accuracy of metering and eliminate the friction between the screw and the pipe wall.
3. It is equipped with a spherical or conical non-leak valve to prevent material leakage.
YCJS-S3 screw feed-in machine 1 PCS The silo volume is 230L, the feeding pipe diameter is φ114, and the whole machine is all 304 stainless steel material.
preformed bag filling machine

preformed bag filling machine

preformed bag filling machine

preformed bag filling machine

preformed bag filling machine

preformed bag filling machine

preformed bag filling machine

preformed bag filling machine

preformed bag filling machine

preformed bag filling machine

preformed bag filling machine

preformed bag filling machine

preformed bag filling machine

preformed bag filling machine

preformed bag filling machine

preformed bag filling machine

Milk Powder proformed Pouch packing machine

Milk Powder proformed Pouch packing machine

  1. Overview:

This set of equipment consists of a bag-feeding automatic packaging machine, a combination weigher, a material feeder, and a working platform. It is mainly suitable for automatic feeding of small granular materials such as washing powder, rice, seeds, sugar, feed, sesame, etc. Packing operations of bag taking, coding, bag opening, quantitative measurement, filling, heat sealing, and output of finished products.



  1. Main performance characteristics:

2.1 This machine adopts the most stable cam mechanical transmission technology to make the equipment run stably, with low failure rate and low energy consumption. At the same time, the machine adopts high-end circuit structure, advanced technology such as man-machine interface (PLC+HMI), realizes electromechanical integration, and is convenient and simple to operate;

2.2 The size of the packaging bag can be changed quickly. The width of the manipulator device can be easily and quickly completed by the motor button.The operation is simple, time-saving and labor-saving. Just input the corresponding items on the large color touch screen, and the equipment can automatically adjust the size of the packaging bag, packaging speed, sealing temperature, etc;

2.3 During the production process, the equipment is equipped with an automatic detection system to automatically adjust the angle parameters of the components. The system will give an alarm and display the cause of the alarm on the touch screen.The technician can directly troubleshoot the fault. To achieve “no bag or unsuccessful opening-no filling-no sealing”, the packaging yield is high;

2.4 The product is equipped with detailed functions such as emergency stop, exhaust, compaction, automatic card insertion, abnormal discharge, and automatic lubricating oil. The whole packaging process does not require manual operations, which effectively improves production efficiency and saves labor and management costs. , Which greatly reduces costs and improves production efficiency. The packaging machine can implement self-automatic detection and information feedback, the fault display is clear at a glance, and the high-sensitivity electric eye tracking. In the production operation, if there is no packaging bag or the packaging bag is not opened, the detection device controls non-filling and non-sealing, the running status is displayed in real time, and the machine stops automatically. Save packaging materials and raw materials to ensure the packaging site environment;

2.5 The packaging bag and the parts in contact with the material are all made of stainless steel or other materials that meet the food hygiene requirements to ensure the hygiene and safety of the food and meet the food hygiene standards;

2.6 It adopts the latest German PLC control system and stepless variable speed inverter. The main motor, PLC, inverter, sensor, relay, contactor, and pneumatic components are all internationally renowned brands;

2.7 The packaging machine controls the release of the material by the weighing scale without wasting materials;

2.8 The equipment is equipped with a safety protection door, which is made of transparent organic glass;

2.9 High-precision digital sensor realizes high-speed and accurate weighing;

2.10 The display has its own help menu for easy learning and use;

2.11 The amplitude of each line can be adjusted independently during operation, which can make the feeding more uniform and improve the combination accuracy;

2.12 Several hoppers combined into the target weight can be set to discharge sequentially, effectively solving the problem of material blockage;

2.13 The perfect combination of high precision and high speed, the best combination is instantly selected from the rich combination through CPU calculation;

2.14 The equipment is waterproof. After production, the equipment can be directly washed with water;

2.15 Some engineering plastic bearings imported from Germany do not need to be refueled, reducing material pollution;

2.16 The packaging bag has a wide range of applications. It can be packaged in prefabricated bags and paper bags made of multilayer composite films such as single-layer PE, PE composite material, CPP composite material, aluminum foil and other materials;

2.17 The packaging material loss is low. This machine uses prefabricated bags with perfect packaging patterns and good sealing quality, which improves the product quality;

2.18 There are a variety of bag delivery methods. The bag storage device can store more packaging bags, which has lower requirements on the quality of the bags, and has a high rate of bag splitting and bag loading;

2.19 Operating noise of the whole machine: The operating noise of the equipment is within 70db (outside the range of 1m);

2.20 The equipment sealing adopts constant temperature sealing;

2.21 The whole equipment is beautiful, easy to clean, and meets GMP requirements.

  1. Main parameters
Model YCJS-200A
Name Bag-feeding packaging machine
Type of packaging bags Self-supporting bags, flat bags (three-side sealing, four-side sealing, handbag, zipper bag), paper bags and other composite bags
Size of packaging bags 200 mm: (W:100~200mm; H:≤300mm)
Weight of packaging bags 250-450g
Speed of packaging bags 20-30bag/min (The specific speed is determined by the material characteristics and filling weight)
Power supply Three phase 380V 、50/60Hz
Total power 4KW
Dimension ≈1900×1600×2500mm
Remark Different types of packaging machines need to be selected according to the bag type, bag size and other parameters



  1. Main electrical configuration
No. Name Model Brand
1 PLC SIMATIC S7-200 Siemens
2 Touch screen SMART 700 IE Siemens
3 Frequency converter VFD015 M43B Taiwan Delta
4 Encoder E6B2-CWZ6C Japanese Omron
5 Vacuum pump KRX5-P-V-03 Japanese Orion
6 Sensor Xs8s173NAL2C Japanese Omron
7 Breaker LGBKN-16A Korean LG
8 Relay RXM2AB2BD France Schneider
9 Cocontactor LC10910M5N France Schneider
10 Proximity switch TC-Q5MC1-Z France Schneider
11 Optoelectronic switch E-SX670A France Schneider
12 Switching power supply DR-75-24 Taiwan MIWE
13 Filter AFC3000 Taiwan Airtac
14 Switching power supply DR-75-24 Taiwan MIWE
15 Button ZB2-BA61C France Schneider
16 Fan DO200A Taiwan Sunon
17 Aviation plug YD20-4P Shanghai
18 Solenoid valve
Vacuum valve
SY5120-5G-01 Japanese SMC
VQ21A1-5G-C8-F
VP342R-5GR-02A
19 Cylinder stator CG1BN20X20 Japanese SMC
CG1BA32-40
ACQ50X30-B Taiwan Airtac
20 Temperature controller CH-102 Japanese RKC
Solid-state relay SSR-25DA AOYI
21 Cam bearing F-16 IKO
22 Plastic engineering bearing JUM-02-30/JUM-02-25 Germany IGUS
23 Heating pipe 110V RUNLI
24 Host electric 750/30 Taiwan GPG
25 Binding post SKA-2.5-4/EN Germany Weldmuller
26 Servo motor Taiwan Teco
27 Micro motor Xiamen(Germany) JSCC
