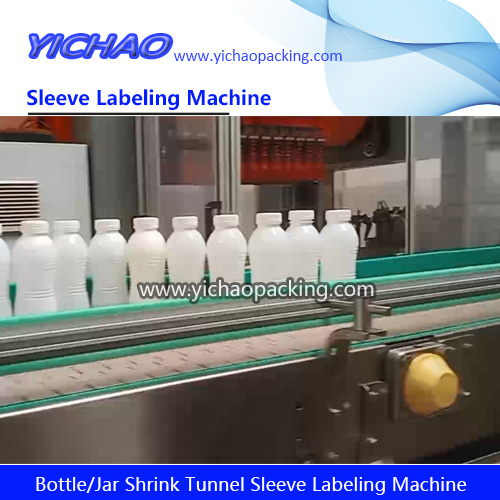

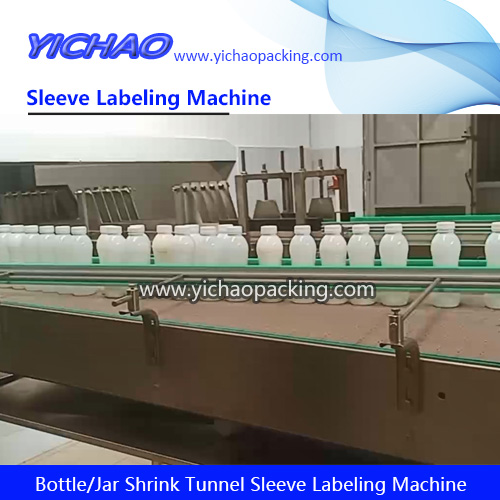

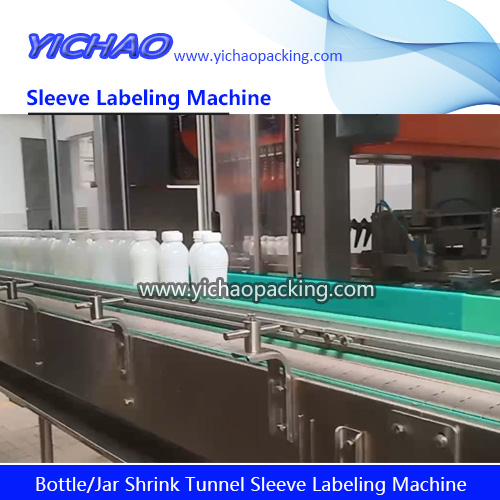

    Full-auto sleeve and shrink labeling machine
    Full-auto sleeve and shrink labeling machine
    Sleeve machine
    sleeve machine
    Synchronized transmission, any change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than 6 hours, the maintenance of this machine is much easier, so it won’t influence production.
    Unit cutter head plane design in China . Never need to change or debug it. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products.
    Shrinking label feed plane ,reasonable height which is convenient to fix the label ;micro-computer auto figure which avoid enactment and adjustment .you only need to press it lightly ,the label will detect and locate automatically .The change of label is quick and convenient, besides ,the cut place is absolutely exact .
    Label feeding equipment :driving synchronized tensility control the supply of label, the supply ability is 90meters per minute, volume label supply plane is ∮500mm, the internal diameter of paper tube will be 4’, 8’, 10’. The configuration of label feeding is stable tensility which enable the exact length of label and the stable, quick supply of label. The center pillar apply step by step shoot label structure .
    The newly designed cutter head use step by servo motor driving which speed is high, action is exact, the cut is in order and the shrinking is beautiful. This design cooperate with the label synchronized location structure enable the precision of cut location within 1mm.
    Many emergency stop buttons enable emergency stop at the proper position along the production which guarantee the safe production.

    Produce speed 250B/min
    Bottle diameter Æ28mm ~Æ 125mm
    Label length 30mm ~ 250mm
    Label thickness 0.035mm ~ 0.13mm
    Label material PVC/PET/OPS
    Dimension 2000*1000*H2000mm

    Shrink tunnel
    Shrink tunnel
    In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style steam shrinking oven is easy to adjust and maintain. The distribution of low-pressure steam drum and spouting way of steam are uniform and designed with seamless tube. The nozzle is divided to be adjustable three segments and the height, position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect. The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also complies with the international safety standard. The stainless steel defrosting tray collects condense water.

    Input power supply of blower 1.1kw
    Working pressure 0.1Mpa
    Steam consumption 10-20Kg/hour
    Dimension L1800*W400*H450mm
    Transporting Speed 0-35m/min

    Steam generator
    The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with a high level of working efficiency.

    Input Power 18KW
    Steam Pressure 0.25-0.4Mpa
    Vapor Generation 24kg/h
    Dimension L600*W550*H1200mm
