  • Multi-Line Back Sealing Powder Packaging Machine

    CATEGORY AND TAGS:
    Multilane Packing Machine
    enquiry
    • Specifications

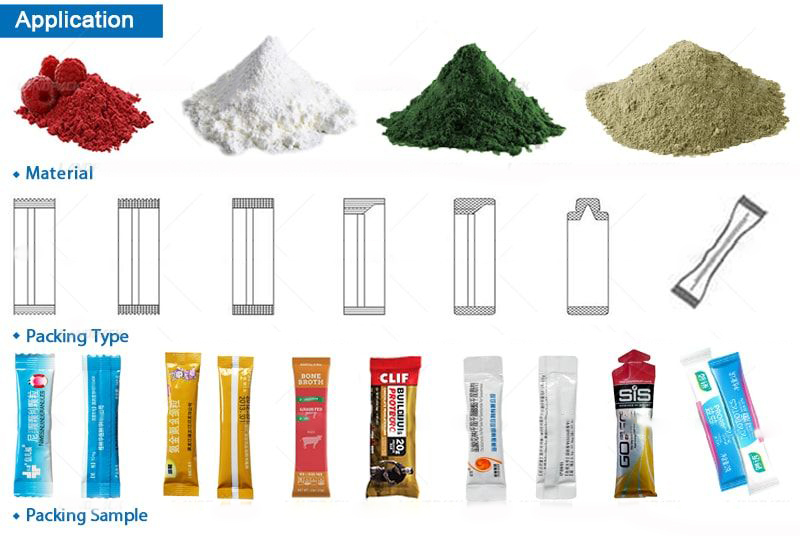

    Application:

    Suitable for many kinds of powder products, such as flour, milk powder, coffee powder, glucose, medical powder, nutrition powder, etc.

    Kindly Reminder:
    We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

    Packing Exambers:

    Description:

    Multi lanes machine can produce multi lanes bags at same time.

    Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

    Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.

    Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

    High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

    PLC controller, high function and control the whole machine’s work steps.

    Parameter:

     Model  YCLD-280BF  YCLD-560BF
     Lane number  4-6 Line  8-12 Line
     Filling Method  Auger filling by servo motor
     Capacity  Max.35 cycle/ min
     Sachat Size  L:50-180mm; W:17-30mm  L:50-180mm; W:17-30mm
     Film weidth & Thickness  Max.280mm, 0.07-0.10mm  Max.560mm, 0.07-0.10mm
     Sealing type  Back sealing/Stick bag  Back sealing/Stick bag
     Cutting type  1.Straight cutting;2.Zig zag cutting;3.Round cutting;4.Irregular
     Air & Powder  0.8Mpa 0.8m3/min; 3.5kw   0.8Mpa 0.8m3/min; 5.5kw
     Dimension & weight  1385*918*2005mm;350kg  1685*1300*2005mm;550kg
