China professional filling packing machine supplier

Tube Sealing Machine

» Supporting Equipment » Tube Sealing Machine

  • Automatic High Speed Tube Sealing Machine For Laminated And Aluminium Tubes

    CATEGORY AND TAGS:
    Tube Sealing Machine
    enquiry
    • Specifications

    Applicable industries:

    Cosmetics, light industry (household chemicals), pharmaceutical, food and other industries

    for enterprise product selection to the hose for the packaging container, the device suitable

    for ointments, creams, gels or viscosity fluid filling, and then sealing the hose tail and print

    code, the system produces the finished product.

    Soft tube filling and sealing machine is mainly used for the packaging containers of plastic hose material

    quantitative filling, sealing, this machine is widely used in pharmaceutical,

    cosmetic, food, chemical and other industries packaging. Such as ointments, gels, adhesives,

    AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste

    filling and sealing materials.  .

    Kindly Reminder:

    We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

    Packing Exambers:

    Description:

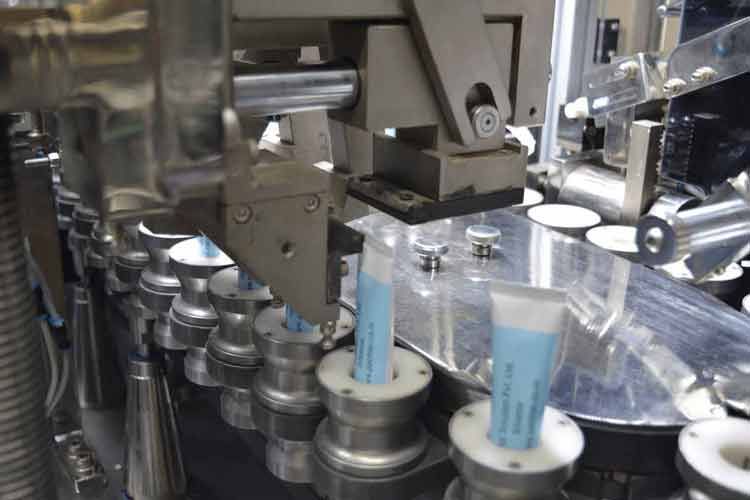

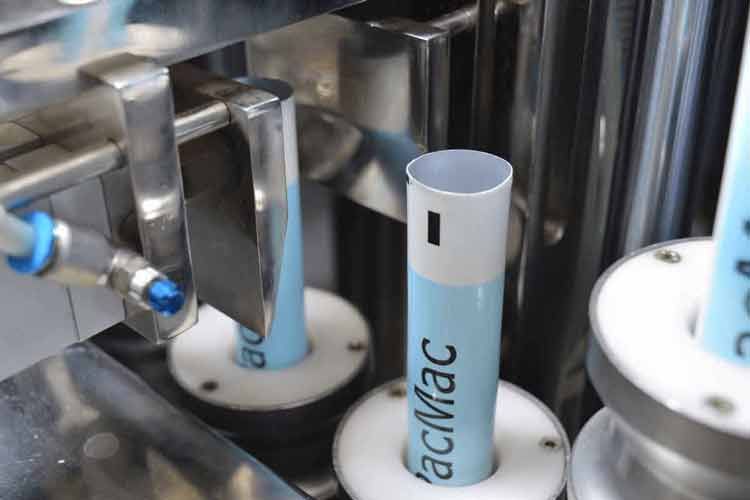

    Use rotary piston way, filling precision, using light point control, heated sealing all work with high precision

    cylinder full stroke control, easy to adjust filling volume, the filling speed can be adjusted.

    It applies to all kindsof composite tubes, plastic pipe and

    metal pipe filling and sealing, date printing, cut the tail.

    Sealing neat appearance, sealing strong, high accuracy, good stability.

    According to the different material properties, Optional ingredients bucket

    heating system, anti-leak filling head, Machine adopts imported PLC control, import the

    original frequency control, pneumatic components using (AIRTAC),

    import original (SICK) photoelectric sensors,high stability, imported hot air flow meter

    and the formation of hot air heating system.

    Double Nozzle lip butter Tube Filling And Sealing Machine

    Packaging materials and filling materials Scope:

    1) soft tube, plastic pipe, composite pipe.

    2) ointment, cream, gel viscosity fluids agents.

    Parameter:

     Item  Heat sealing
    Voltage 220V/380v/50Hz/60Hz
    Productivity 80-100pcs/min
    Filling volume 3-250 ml(customized)
    Tube diameter 11-38mm(customized)
    Tube length 50-200mm(customized)
    Max power 7.5KW
    Water consumption 3-6L/min
    Machine weight About 1300kg
    Dimension(L*W*H) 2150×850×2100mm
